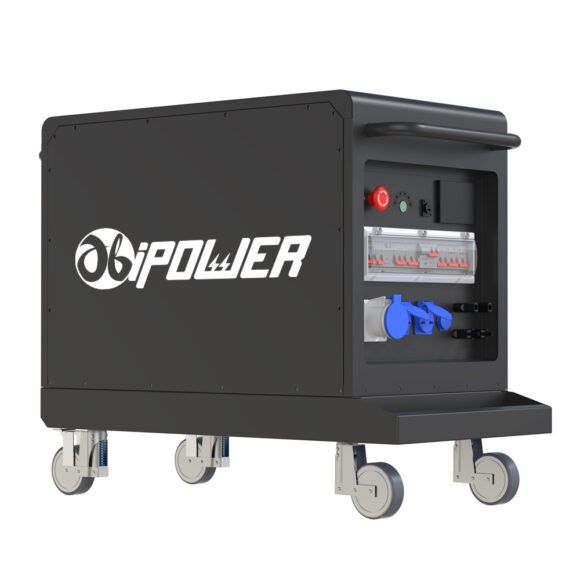

The EH04 is a residential home energy storage system combining a hybrid inverter and LiFePO4 battery modules to provide backup power, bill savings and smart energy management for modern homes.
It offers uninterruptible power supply, simple one‑button operation, over 6,000 cycles and flexible, stackable capacity to match different household energy needs.
Availability: In Stock
Uninterruptible power supply (UPS): keeps lights, appliances and critical loads running during grid outages.
Simple operation: one‑touch start/stop and user‑friendly design for homeowners.
Reduced energy costs: stores energy when tariffs are low and uses it when tariffs are high (time‑of‑use optimization).
Long cycle life: >6,000 charge–discharge cycles at 80% DoD for long‑term reliability.
Stackable design: expandable battery capacity to adapt to small, medium or large homes.
Smart integration: Wi‑Fi/internet and Bluetooth support with dedicated app for smart‑home energy control.
Rated output power: 5.5 kW or 11 kW (two configurations).
Rated output voltage: 230 Vac (single‑phase).
Input voltage range:
5.5 kW: 170–280 Vac ±2%
11 kW: 90–280 Vac ±2%
Maximum PV input power: 6000 W (5.5 kW model), 12000 W (11 kW model).
Maximum PV input voltage: 500 Vdc.
MPPT voltage range: 120–450 Vdc for efficient solar harvesting.
Maximum PV charging current: 22 A (both versions).
Battery type: LiFePO4, 16S1P configuration.
Battery capacity per pack: 100 Ah.
Battery energy:
5.5 kW system: 5.12 kWh × (2–4 packs recommended).
11 kW system: 5.12 kWh × (4–8 packs recommended).
Rated voltage: 51.2 V.
Rated output current: 100 A.
BMS protection current: 105 A.
Charging cut‑off voltage: 57.6 V.
Standard charging current: 50 A (5.5 kW), 100 A (11 kW).
Maximum mains charging current: 60 A (5.5 kW), 120 A (11 kW).
Peak charging current: 100 A (5.5 kW), 200 A (11 kW).
Charging mode: constant current / constant voltage (CC/CV).
Discharge cut‑off voltage: 42.4 V.
Discharge current: 100 A (5.5 kW), 200 A (11 kW).
Maximum discharge current: 100 A (5.5 kW), 200 A (11 kW).
Charging temperature: 0 to 65 °C (32–149 °F).
Discharge temperature: -20 to 65 °C (-4–149 °F).
Storage temperature:
1 month: 0–35 °C
≤1 month: -20–45 °C
Ambient humidity: 15–90% RH, non‑condensing.
Cycle life: about 6000 cycles at 80% DoD and 25 °C.
Stackable design: easily increase or decrease the number of battery packs as your home energy demand grows.
International compatibility: supports European and American standards, with full accessory kit and detailed manual.
Built‑in BMS: advanced battery management protects against overload, overheating and short circuit.
Smart integration: internet and Bluetooth connectivity with dedicated app for monitoring, settings and real‑time data.
High‑quality wheels: easy to move, smooth rolling and strong load‑bearing capacity for flexible installation in the house or garage.
One‑touch operation: single power button to turn the system on or off, ideal for non‑technical users.
Network support, scalability, long life and high integration for a compact, all‑in‑one home ESS.
Whole‑home backup power during grid outages.
Solar self‑consumption and time‑of‑use bill reduction.
Smart home energy management with app control.
Small to medium homes, apartments and light commercial offices.
